10W Mono 4/25V/70.7V/100V Power Amplifier

Ideal Use Cases

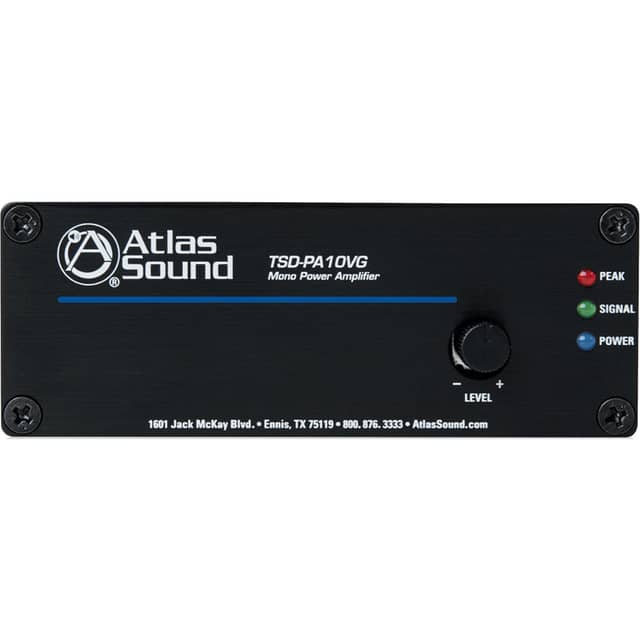

The AtlasIED TSD-PA10VG is a single-input, 10-watt mono power amplifier designed for sound masking, paging, background music, and expansion zones. Its compact dimensions make it especially well suited to small spaces where a full-width amplifier would be impractical. Support for both low-impedance and distributed speaker loads allows the model to serve several common commercial audio configurations.

The amplifier delivers 10W into a 4Ω load and 5W into an 8Ω load. It also supplies 10W for 25V, 70V, and 100V distributed systems. This range makes the TSD-PA10VG suitable for a localized speaker or a distributed audio zone, provided the connected load matches one of its supported output configurations.

Why Choose This Model

The defining advantage of the TSD-PA10VG is the combination of compact construction and flexible output support. The chassis measures 4 inches wide, 1.5 inches high, and 2.75 inches deep. It occupies one quarter of a rack width and is 1RU tall, allowing it to fit into space-conscious commercial audio installations.

• One balanced line-level input
• 10W output at 4Ω
• 5W output at 8Ω
• 10W output for 25V, 70V, and 100V loads
• Compact quarter-rack-wide, 1RU format

These specifications make the amplifier a focused choice when an installation requires one audio input, a modest amount of power, and compatibility with several speaker-system formats.

Installation and Integration

The line input is rated for a balanced 500mV signal, equivalent to -6dBV. This balanced input arrangement is intended for integration with compatible commercial audio equipment. The amplifier operates from 24VDC and requires 500mA, so system planning should account for those power requirements.

Its output options accommodate 4Ω and 8Ω low-impedance loads as well as 25V, 70V, and 100V distributed loads. The selected speaker load should be matched to the applicable output rating: 10W for 4Ω or distributed-voltage operation and 5W for an 8Ω load.

Performance Highlights

The TSD-PA10VG has a specified frequency response of 40Hz to 20kHz. Total harmonic distortion is rated at 0.5% at 1kHz. Together with its 10-watt output rating, these specifications provide clear performance parameters for evaluating the amplifier in paging, sound-masking, background-music, and small-zone applications.

Output power remains rated at 10W across 4Ω, 25V, 70V, and 100V loads, while an 8Ω load is supported at 5W. Installers can therefore select the appropriate configuration using the published load and power ratings.

What Makes It Different

Many small-zone installations must choose between a low-impedance amplifier and a distributed-system amplifier. The TSD-PA10VG supports both approaches in one compact enclosure. Its compatibility with 4Ω, 8Ω, 25V, 70V, and 100V loads provides practical flexibility when building a new zone or expanding an existing commercial audio system.

The combination of a single balanced input, clearly defined output ratings, a 40Hz to 20kHz frequency response, and a chassis only 4 inches wide keeps the product focused on installations where space and system compatibility are central considerations.

Final Assessment

The AtlasIED TSD-PA10VG is a compact commercial mono amplifier for projects that require up to 10W of output and support for both low-impedance and distributed speaker systems. Its quarter-rack-wide chassis, balanced 500mV input, 24VDC operation, and support for paging, sound masking, background music, and expansion zones make it a practical fit for targeted small-space audio applications. The product is covered by a 36-month warranty from the date of purchase.
