6″ FS Series Surface Mount, Passive, White

Ideal Use Cases

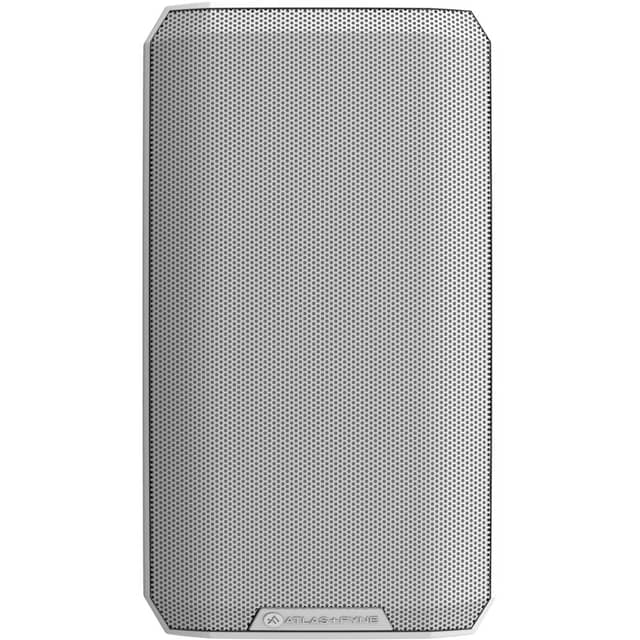

The AtlasIED FS-6T-W is a white, passive 6-inch surface mount loudspeaker designed for commercial environments. Its two-way, full-range configuration is suited to installations that require high-fidelity audio from a clearly defined surface-mounted format. A nominal 100° conical coverage angle helps system designers evaluate placement against the intended listening area, while the white finish supports projects where the loudspeaker color is part of the installation plan. Transformer taps and Low Z operation also allow the model to be considered across multiple commercial audio system configurations.

Why Choose This Model

The FS-6T-W combines IsoFlare™ technology with a substantial set of published acoustic specifications. Its frequency range extends from 57Hz to 20kHz at -10dB, while the stated frequency response is 72Hz to 19kHz within +/-3dB. System sensitivity is rated at 89dB for 1W at 1 meter. These measurements provide useful reference points when comparing the loudspeaker with other models or planning a system around specific coverage, output, and frequency requirements.

Power handling is rated at 80W average, 160W programme, and 320W peak. AtlasIED recommends amplifier power of 160W at 8 ohms, and the loudspeaker has a nominal impedance of 8 ohms. Together, these specifications give integrators concrete parameters for selecting compatible amplification without relying on generalized power descriptions.

Installation and Integration

The surface mount enclosure measures 13.90 inches high by 7.73 inches wide by 8.66 inches deep, equivalent to 353mm by 196mm by 220mm. Each loudspeaker weighs 12.02 pounds, or 5.45kg. These dimensions and weight should be considered when determining the intended mounting location and installation approach.

For system integration, the FS-6T-W provides 60W, 30W, 15W, and 7.5W transformer taps, plus a 3.8W setting for 70V operation and a Low Z operating option. This range of settings gives system designers several documented power choices. For an 8-ohm configuration, the published recommended amplifier power is 160W. The available electrical specifications make it possible to match the loudspeaker to the planned amplifier and system layout.

Performance Highlights

The rated maximum average sound pressure level is 108dB. With the maximum transformer tap, the specified average level is 107dB. Nominal coverage is 100° conical at -6dB, accompanied by a directivity index of 8.2dB. These values describe both the output capability and directional behavior of the loudspeaker, helping installers assess how it may perform within a proposed commercial audio design.

Its published 57Hz to 20kHz frequency range covers a wide portion of the audible spectrum, while the tighter 72Hz to 19kHz response specification provides an additional performance reference. IsoFlare technology is identified as the central technology supporting the model’s high-fidelity audio performance.

What Makes It Different

The FS-6T-W brings together a passive, two-way full-range design, a 6-inch surface mount format, and both transformer-tap and Low Z operation. That combination distinguishes it as more than a single-configuration 8-ohm loudspeaker. Designers can work from defined tap settings, a documented 8-ohm impedance, and detailed power ratings while retaining the same white FS Series model. The 100° conical coverage specification further provides a clear basis for layout decisions.

Final Assessment

The AtlasIED FS-6T-W is a technically well-documented option for commercial installations requiring a white, passive surface mount loudspeaker. Its strengths include IsoFlare technology, 80W average power handling, 89dB sensitivity, 100° conical coverage, and flexible transformer-tap or Low Z operation. Published dimensions, weight, output ratings, and amplifier guidance support informed system planning. The product is covered by a warranty period of 60 months from the date of purchase.
