800-W Two Channel Multi Impedance Power Share Amplifier

Ideal Use Cases

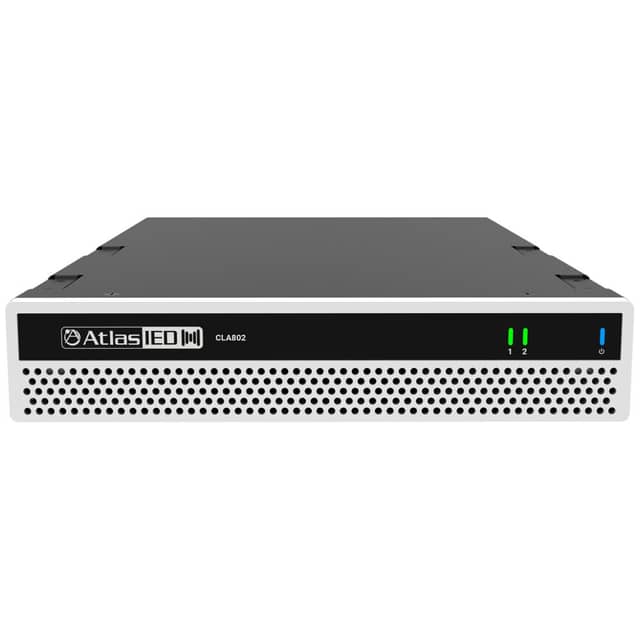

The AtlasIED CLA802 800W power amplifier is expertly crafted for commercial distributed audio and low-impedance sound reinforcement. This versatile model excels in environments like restaurants, presentation rooms, classrooms, conference rooms, and retail spaces. With support for 2-, 4-, and 8-ohm loads, as well as 25V, 70V, and 100V systems, the CLA802 adapts to a wide range of audio requirements.

Why Choose This Model

The CLA802 stands out with its Power Share technology, which ensures precise power distribution to zones regardless of load differences. This flexibility is combined with two channels, two inputs, and a robust 800W output. Its Class D topology is compactly housed in a 1 RU, half-rack format, perfect for installations with limited space.

Ideal for projects involving both commercial distributed systems and low-impedance sound reinforcement, the CLA802 minimizes the need for multiple amplifier types, thanks to its broad impedance and voltage mode capabilities.

Installation and Integration

Compact at 1.75 inches high, 8.75 inches wide, and 11.75 inches deep (44 x 222 x 298 mm) and weighing just 7.61 lbs (3.45 kg), the CLA802 fits seamlessly into tight spaces and rack systems. It features two removable, locking Euro Block speaker terminals with a 5.08mm pitch and five GPI ports on 3.5mm Euro Block connections. The unit cools itself passively when idle and uses a variable fan when an audio signal is detected.

Performance Highlights

Delivering 800W output, the CLA802 achieves a total harmonic distortion of ≤0.15% at 1kHz and 1dB below rated power. It boasts a signal-to-noise ratio of over 93dBA below rated output (A-weighted) for 8-ohm operation. Frequency response varies by mode: 20Hz to 20kHz (+0/-1.5dB) for 2-, 4-, 8-ohm and 25V, and 50Hz to 20kHz (+0/-1.5dB) for 70V and 100V systems, ensuring optimal performance across different audio setups.

What Makes It Different

The CLA802’s unique combination of two-channel amplification, variable impedance options, and Power Share technology allows it to efficiently handle diverse audio needs. Its design includes locking speaker terminals, five GPI ports, and adaptive cooling, making it a robust choice for commercial applications. The amplifier’s detailed performance specifications across various modes further enhance its appeal.

Final Assessment

For installations needing versatile 800W two-channel Class D amplification, the AtlasIED CLA802 is an exceptional choice. Its Power Share technology, multiple impedance and voltage modes, compact size, and commercial-grade connections make it ideal for distributed audio and sound reinforcement projects. A 36-month warranty from the date of purchase assures long-term reliability.
