Speaker 6″ Coax T7/4W HQ FA

Ideal Use Cases

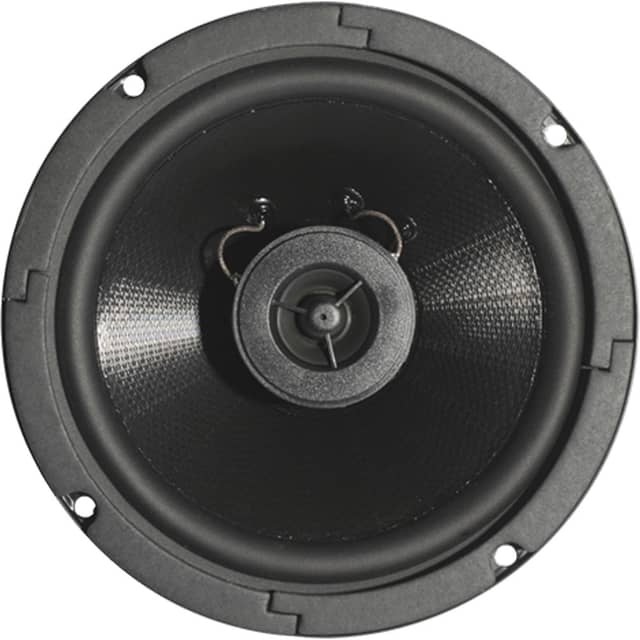

The AtlasIED FA136T47 is expertly designed for installations that require effective distribution of paging announcements and background music. Its integrated 70V transformer makes it a perfect fit for distributed-audio systems that utilize compatible 70V amplification. With four power taps available, this speaker can be tailored for specific system needs, offering flexibility in output power—whether it’s 0.5, 1, 2, or 4 watts.

The 130-degree dispersion angle ensures wide coverage, making it ideal for comprehensive audio distribution in a variety of environments such as offices, retail spaces, and educational facilities. Its unobtrusive in-ceiling design is well-suited for venues where aesthetics are as important as audio performance.

Why Choose This Model

The FA136T47 combines a 6-inch coaxial loudspeaker with a 4-watt 70V transformer, eliminating the need for separate components and simplifying installation. This all-in-one solution ensures compatibility and ease of setup for 70V audio systems. The four selectable power taps provide the flexibility to adapt to different acoustic environments and project requirements.

Its average sensitivity of 88dB and peak sensitivity of 91dB, coupled with a frequency response from 80Hz to 20kHz, offer robust sound reproduction perfect for background music and clear paging. UL1480 and UL2043 safety certifications further assure reliability and compliance with safety standards.

Installation and Integration

Measuring 6 9/16 inches in diameter and 5 1/8 inches deep, the FA136T47 is designed for seamless integration into a variety of ceiling types. Its dimensions make it suitable for standard ceiling installations, ensuring easy and quick setup.

The speaker’s integration into a 70V system is straightforward, with the flexibility to choose among 0.5, 1, 2, and 4-watt taps. This adaptability allows installers to optimize the system for specific acoustic needs and power considerations. Weighing just 3.67 pounds, it is lightweight enough for easy handling during installation.

Performance Highlights

The FA136T47 delivers impressive audio performance with its 80Hz to 20kHz frequency response, ensuring a full range of sound for both paging and music applications. Its 130-degree dispersion ensures even sound distribution across large areas, reducing the need for additional speakers.

• 6-inch coaxial loudspeaker
• Integrated 4-watt 70V transformer
• Selectable power taps: 0.5, 1, 2, and 4 watts
• 80Hz to 20kHz frequency response
• 88dB average and 91dB peak sensitivity
• 130-degree dispersion

What Makes It Different

What sets the FA136T47 apart is its all-in-one coaxial configuration with an integrated 70V transformer and multiple wattage taps. This allows for precise customization and scalability in audio installations, particularly in multi-speaker setups. The UL1480 and UL2043 safety listings, along with a 60-month warranty, underline its reliability and durability.

The speaker’s ability to deliver clear and consistent audio across various environments without requiring additional components makes it a standout choice for professionals seeking efficient and effective audio solutions.

Final Assessment

For those in need of a reliable, versatile, and easy-to-install in-ceiling speaker, the AtlasIED FA136T47 is an excellent option. Its integrated design, comprehensive power tap options, and robust audio performance make it an ideal choice for paging and background music applications. Supported by safety certifications and a five-year warranty, this speaker is built to deliver exceptional sound quality and reliability for years to come.
