TSD, Power Distro, 6 Out, 5-24DC VAR

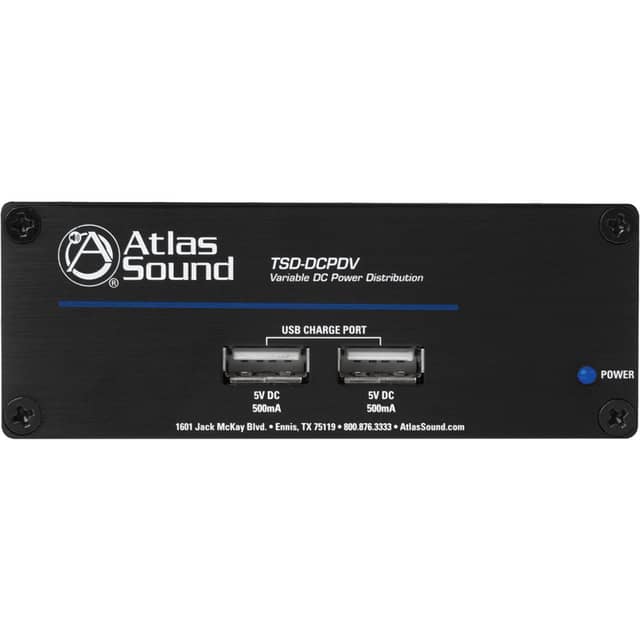

The AtlasIED TSD-DCPDV distributes DC power to as many as six TSD devices or other equipment requiring DC power. Its six-output configuration combines four fixed power outputs with two variable outputs, allowing multiple connected devices to operate without separate power supplies for every load. The fixed USB outputs provide 5V DC at 1A each, while the two adjustable outputs cover a 5V to 24V DC range. The unit uses a 24V DC input rated from 1A to 3A, with a 3A maximum.

Ideal Use Cases

This model is intended for systems that need to supply DC power to several TSD devices from one distribution point. It can also serve other DC-powered equipment when the equipment requirements match the distributor’s available voltage and current. The combination of fixed and adjustable outputs is useful when a system includes devices with different DC voltage requirements. Four loads can use the fixed 5V DC USB outputs, while two additional loads can be assigned adjustable voltages between 5V and 24V DC.

Why Choose This Model

The TSD-DCPDV provides six power outputs in a unit measuring 4 inches wide, 1.5 inches high, and 2.5 inches deep. Rather than relying exclusively on fixed-voltage connections, it includes two variable outputs for equipment requiring a voltage other than 5V DC. This gives the distributor a defined role in mixed-voltage DC systems while retaining four fixed USB outputs for 5V devices. Each fixed USB output is specified at 1A, subject to the selected power supply and the total connected load.

Installation and Integration

Integration begins with a 24V DC power source. The listed input range is 1A to 3A, with 3A identified as the maximum. Power-supply current must be selected according to the number of devices connected to the DCPDV and their cumulative current consumption. AtlasIED directs system designers and installers to use the TSD Power Calculator to determine the total required current. This calculation is important because the available output is tied to the chosen supply and the combined demand of every connected device.

Before making connections, identify which loads require the fixed 5V DC USB outputs and which require an adjustable output. Set each variable output within the specified 5V to 24V DC range according to the connected equipment’s requirements. The enclosure dimensions are 4 by 1.5 by 2.5 inches, or 10.16 by 3.81 by 6.35 centimeters, and the listed weight is 6 ounces or 0.165 kilograms.

Performance Highlights

The primary performance feature is simultaneous distribution to as many as six compatible devices. Four fixed USB outputs deliver 5V DC at 1A each, while two variable outputs provide adjustable DC voltage from 5V through 24V. This arrangement supports both consistent 5V distribution and two independently assigned variable-output connections. Overall current capacity is not a single universal value for every installation; it depends on the selected power supply and the accumulated current consumption of the connected equipment.

What Makes It Different

The defining distinction is the combination of four fixed and two variable DC outputs in one distributor. A fixed-output-only solution would not address equipment requiring voltages above 5V DC, while the TSD-DCPDV extends its two adjustable outputs to 24V DC. At the same time, the four fixed USB connections remain available for 5V DC loads. This split configuration directly supports installations where several devices share a distribution point but do not all use the same voltage.

Final Assessment

The AtlasIED TSD-DCPDV is a focused power-distribution option for as many as six TSD devices or other compatible DC-powered products. Its four fixed 5V DC USB outputs, two adjustable 5V to 24V DC outputs, and 24V DC input provide clearly defined connection choices. Proper power-supply selection should be based on the number of attached devices and their total current demand. The product carries a 36-month warranty from the date of purchase.
