Display TV LCD Wall Mount Fixed 60″ to 100″ Flat Screen / Panel

Ideal Use Cases

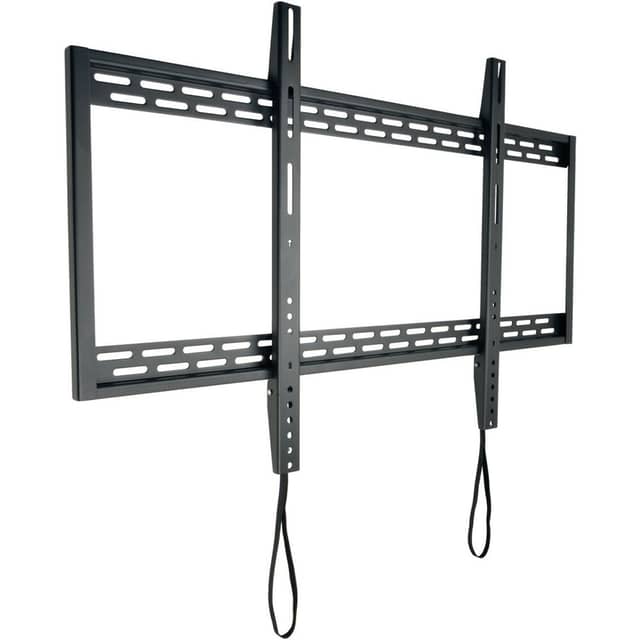

The Eaton Tripp Lite series DWF60100XX is designed for large-format, single-display wall installations that require a stationary viewing position. It fits most flat-panel monitors and HDTVs from 60 to 100 inches and supports one display weighing up to 350 lb (158.8 kg). This combination suits installations where a large screen needs to remain fixed against a wall rather than tilt, swivel, or extend. The black finish and concealed placement help keep attention on the display, while the fixed configuration provides a direct mounting solution for compatible screens. Its open-frame construction also allows easier access to the wall area behind the installed display.

Why Choose This Model

Built from steel and UL Listed, the DWF60100XX combines a substantial load rating with broad display compatibility. The mount measures 39.72 inches wide, 24 inches high, and 1.25 inches deep, with a product weight of 10.03 lb. It is designed to hang out of sight behind the screen for a sleek, professional appearance. Because its motion is fixed, this model is best suited to installations where the viewing angle and screen position can be established during setup and do not need ongoing adjustment. The wall mount accommodates one monitor or HDTV and provides a clearly specified alternative to adjustable mounting systems.

Installation and Integration

Assembly is required, and tools are necessary for installation. The package includes a wall plate, two adapter brackets, six anchor bolts, six concrete anchors, six D6 washers, four additional washers, eight small spacers, and four big spacers. Display fasteners include four M5 x 14 screws, four M6 x 14 screws, four M6 x 30 screws, four M8 x 20 screws, and four M8 x 30 screws. An owner’s manual is also supplied. Before installation, the display’s weight and VESA mounting pattern should be matched to the mount’s documented capacity and compatibility list. The supplied spacers and multiple screw sizes provide the listed components needed to work with supported display configurations. The open frame helps preserve access to the wall behind the display during installation and integration.

Performance Highlights

The defining performance specification is its maximum 350 lb load capacity for one display. It supports most flat-panel screens between 60 and 100 inches and remains fixed after installation. Compatibility covers 34 listed VESA patterns, including square configurations such as 200 x 200, 300 x 300, 400 x 400, 500 x 500, and 600 x 600, as well as numerous rectangular configurations. Listed options extend through patterns such as 700 x 600, 800 x 600, and 900 x 600. This range gives the mount documented compatibility with multiple mounting-hole layouts while retaining a fixed wall-mounted format.

What Makes It Different

The DWF60100XX brings together three clearly defined characteristics: support for large 60- to 100-inch displays, a maximum weight capacity of 350 lb, and compatibility with an extensive set of VESA patterns. The listed patterns use horizontal measurements from 200 to 900 and vertical measurements from 200 to 600, with 34 specific combinations documented. Its steel construction, UL Listed certification, and fixed motion establish its intended role as a substantial standard wall mount rather than an articulating display arm. The open frame adds practical wall access, while the 1.25-inch product depth and hidden placement support the stated sleek, professional appearance.

Final Assessment

The Eaton Tripp Lite series DWF60100XX is a focused choice for mounting one compatible large-format monitor or HDTV in a fixed wall position. Its 350 lb capacity, steel construction, UL Listed status, and extensive VESA support address the essential requirements for many 60- to 100-inch flat-panel displays. The supplied wall plate, adapter brackets, spacers, anchors, washers, and multiple screw sizes create a comprehensive package based on the documented contents. For installations that do not require tilt, swivel, or extension, this model delivers fixed positioning, an open frame for wall access, and an out-of-sight mounting profile.
