Wall Mount Swivel Tilt 37"-70"

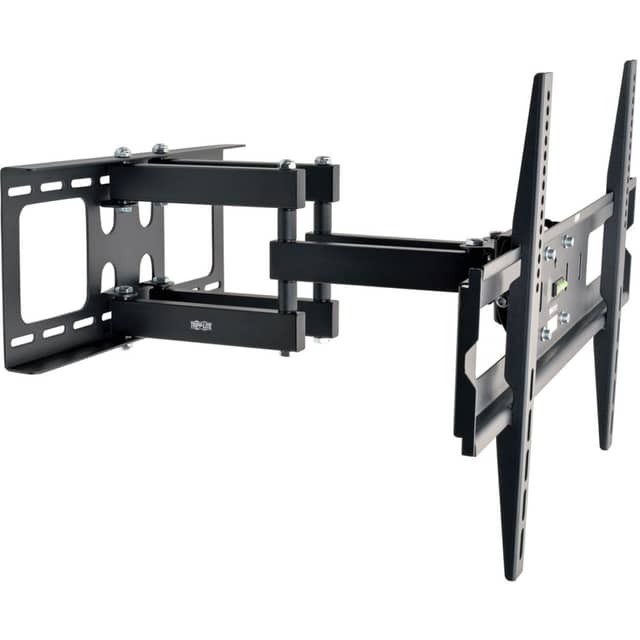

The Eaton DWM3770X is a full-motion wall mount for one 37- to 70-inch flat-panel TV or monitor. Its steel construction supports displays weighing up to 165 lb, while its adjustable arm extends from 4.57 to 20.63 inches. The mount combines 120-degree swivel, -15 to +15-degree tilt, and -3 to +3-degree level adjustment for precise screen positioning.

Ideal Use Cases

This model is suited to installations where a single large HDTV or monitor must be secured to a wall while retaining flexible viewing adjustment. It accommodates most flat-panel displays from 37 to 70 inches and supports a broad selection of VESA mounting patterns ranging from 100 x 100 to 600 x 400. The full-motion design is useful when the screen needs to extend away from the wall, swivel toward different viewing positions, tilt vertically, or receive minor leveling corrections after installation.

With a maximum capacity of 165 lb, the DWM3770X can support compatible displays that require a substantial steel mounting assembly. Its black finish provides a neutral appearance behind a television or monitor.

Why Choose This Model

The DWM3770X brings several adjustments together in one wall-mounted system. The arm can remain at a minimum extension of 4.57 inches or reach as far as 20.63 inches. A 120-degree swivel range provides horizontal positioning, while the screen can tilt from -15 to +15 degrees. The additional -3 to +3-degree level adjustment helps refine the final screen alignment.

One-touch adjustment supports comfortable viewing without requiring the display to remain in a fixed position. Compatibility with numerous VESA patterns also gives the mount flexibility across a range of monitor and HDTV mounting configurations. The supported patterns include 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300, and 600 x 400.

Installation and Integration

The package includes the wall mount, two adapter brackets, a mounting template, six anchor bolts, and six concrete anchors. Display attachment hardware includes four M5 x 14 screws, four M6 x 14 screws, four M6 x 30 screws, four M8 x 20 screws, and four M8 x 30 screws. Six D6 washers, four additional washers, eight small spacers, and four big spacers are also supplied. An owner’s manual is included.

Assembly is required, and tools are necessary. The included mounting template can be used to position the wall installation, while the assortment of screws, washers, spacers, adapter brackets, anchors, and concrete anchors supports integration with compatible displays and mounting surfaces. Display size, weight, and VESA pattern should be checked against the listed specifications before installation.

Performance Highlights

The mount supports one display weighing up to 165 lb, equivalent to 74.8 kg. Its motion system provides 120-degree swivel, -15 to +15-degree tilt, and -3 to +3-degree screen-level adjustment. Arm extension ranges from 4.57 to 20.63 inches, allowing the display position to change according to the required viewing arrangement. The product is identified as a full-motion, standard wall-mount monitor mount and is compatible with monitors and HDTVs.

What Makes It Different

The DWM3770X combines high weight capacity, extensive VESA coverage, and three forms of screen adjustment in a single steel mount. Its 165 lb capacity supports compatible large displays, while the 17 listed VESA patterns cover mounting dimensions up to 600 x 400. The combination of extension, swivel, tilt, and fine level adjustment offers more positioning control than a fixed wall mount.

The supplied installation package is also comprehensive, with multiple screw sizes, two spacer sizes, adapter brackets, washers, anchors, concrete anchors, a mounting template, and an owner’s manual. The product is listed as compliant with RoHS, REACH, and RoHS3 requirements.

Final Assessment

The Eaton DWM3770X is a capable full-motion mounting solution for one compatible 37- to 70-inch TV or monitor. Its 165 lb capacity, steel construction, 4.57- to 20.63-inch extension range, broad VESA support, and adjustable swivel, tilt, and level settings make it well matched to installations requiring both substantial display support and flexible screen positioning.
