ELPMB81 Tilt Adapter with Clamp for Stacking frames Alfa and Beta

Ideal Use Cases

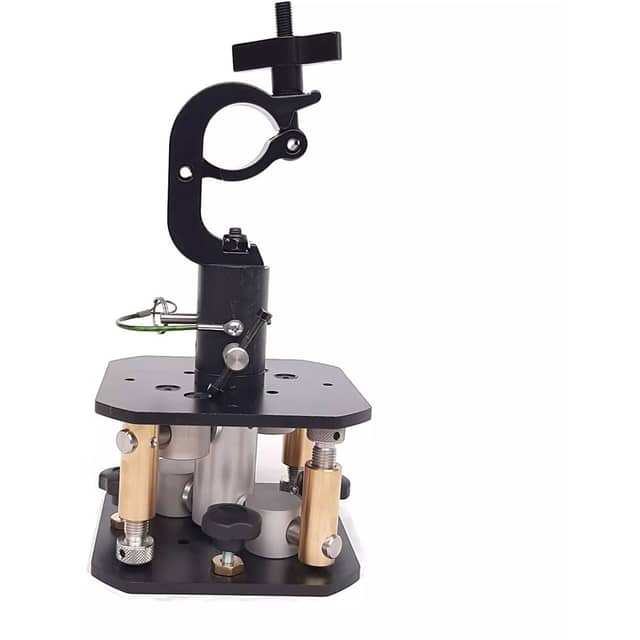

The Epson ELPMB81 tilt adapter is intended for installations that require Alfa or Beta stacking frames to be mounted securely to a truss. It is particularly useful where ordinary fastening positions are impractical or where a projector must be aimed for a specially tilted projection. Its broad orientation range and fine calibration capability support complex setups that demand more positioning flexibility than a fixed mounting point provides. The included truss fixing clamp accommodates truss widths from 48 mm to 51 mm, making the adapter suitable for the specified truss-width range without requiring a separate clamp.

Why Choose This Model

The ELPMB81 combines high load support with multidirectional positioning in a compact mounting accessory. It supports loads up to 551 lb (250 kg) and provides 360-degree rotation on three axes. This range allows the attached stacking frame to be oriented and adjusted around multiple directions while the installation is being calibrated. Once the desired position has been established, threaded locks secure the adapter in place. This combination of rotation, fine adjustment and mechanical locking is valuable when an installation requires both flexible alignment and a securely fastened final position.

Installation and Integration

The adapter mounts the stacking frame securely to a compatible truss using the included clamp. Before installation, confirm that the truss width falls within the supported 48 mm to 51 mm range and that the planned load does not exceed 551 lb (250 kg). The three-axis adjustment can then be used to establish the necessary orientation for the projected image. Threaded locks allow the selected position to be fastened after calibration. For ultra short throw projectors or other projectors without a zoom lens, the ELPMB85 rail adapter can be used to provide fine forward and backward linear adjustment. This additional adjustment option helps address installations where precise projector distance is an important part of image setup.

Performance Highlights

The central performance feature is 360-degree rotation across three axes, giving installers extensive control over the direction and tilt of the mounted stacking frame. Fine calibration capability supports accurate positioning, including situations involving unusual fastening locations or tilted projections. The threaded locking system is designed to hold the chosen orientation securely after adjustment. A supported load of up to 551 lb (250 kg) gives the adapter substantial capacity for its intended mounting role. Its overall dimensions are 7.1 x 7.1 x 14.2 inches, or 180 x 180 x 360 mm, providing clear measurements for planning installation space and truss integration.

What Makes It Different

Unlike a mounting component limited to a fixed angle, the ELPMB81 offers full rotational movement on three separate axes. That flexibility allows one adapter to address wide orientation angles, fine calibration and special tilted-projection requirements. The included 48 mm to 51 mm truss clamp brings the necessary truss attachment into the package, while threaded locks provide a direct method for securing the completed alignment. The option to integrate the ELPMB85 rail adapter also extends the setup for projectors that need fine forward or backward positioning, especially ultra short throw models and other projectors without a zoom lens.

Final Assessment

The Epson ELPMB81 is a focused installation accessory for mounting Alfa and Beta stacking frames where secure truss attachment and extensive angle adjustment are required. Its included clamp, three-axis 360-degree rotation, threaded position locks and 551 lb (250 kg) supported load address the essential mechanical needs of complex projector installations. Finished in white and measuring 7.1 x 7.1 x 14.2 inches, it provides installers with defined dimensions, a specified clamp range and flexible positioning for carefully calibrated projection setups.
