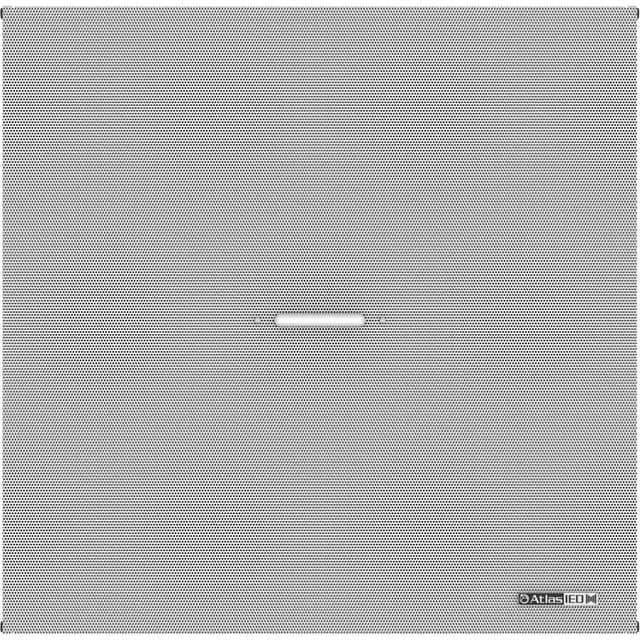

ATLAS PoE+ Indoor 2X2′ Suspended Ceiling Mount IP Speaker

Ideal Use Cases

The AtlasIED IP-22SYSMF is expertly crafted for environments requiring advanced audio solutions, such as educational institutions, corporate settings, and large public spaces. Its 2′ x 2′ suspended ceiling-mount design is ideal for network-wide communication, offering integrated audio delivery with a talkback microphone and LED flasher to manage high ambient noise effectively.

This speaker is particularly suited for areas needing robust audio output and two-way communication, such as classrooms, conference rooms, and auditoriums. Its ability to blend into suspended ceilings makes it an excellent choice for maintaining aesthetic standards while delivering powerful sound.

Why Choose This Model

The IP-22SYSMF stands out by combining multiple functionalities into a single, seamless unit. It features:

• Coaxial speaker design with an 8-inch LF driver and a 1-inch HF driver for balanced sound output.
• A frequency response range from 86 Hz to 15.5 kHz, ensuring clear audio performance across various applications.
• An integrated talkback microphone for effective two-way communication.
• An LED flasher for visual alerts, enhancing communication in noisy environments.
• Power over Ethernet (PoE) capabilities, supporting 12 watts with 802.3af and 25 watts with 802.3at standards.
• A comprehensive 60-month warranty.

These features make it a versatile choice for venues needing reliable and high-quality network audio solutions.

Installation and Integration

Designed for straightforward installation, the IP-22SYSMF fits seamlessly into standard 2′ x 2′ suspended ceilings. It utilizes RJ-45 connectivity for integration into existing network infrastructures. The HTTP GUI allows for easy static configuration, ensuring quick setup and operation.

Dimensions of 23.67″ H x 11.94″ W x 4.89″ D (601 x 303 x 124mm) and a shipping weight of 12.80 lbs (5.81 kg) facilitate easy handling and installation. These specifications ensure compatibility with a variety of ceiling types, simplifying deployment in multiple venues.

Performance Highlights

Performance is a hallmark of the IP-22SYSMF, with a notable sensitivity of 98 dB SPL and a dispersion of 105 degrees, ensuring wide coverage and clear audio quality. Its coaxial design allows for efficient sound distribution, making it suitable for both small and large spaces.

The integrated talkback microphone and LED flasher extend its utility beyond traditional speakers, providing a comprehensive communication solution. Its PoE power options offer flexibility depending on power requirements and infrastructure capabilities.

What Makes It Different

The IP-22SYSMF differentiates itself by offering a combination of audio, talkback, and visual signaling in a compact ceiling-mounted package. This integration supports complex communication needs in a simple, elegant solution. It is not just an audio device but a complete communication endpoint that enhances VoIP systems with additional functionalities.

Final Assessment

AtlasIED’s IP-22SYSMF is a compelling solution for anyone looking to enhance their network audio capabilities with a reliable, high-quality, and feature-rich speaker system. Its combination of audio, visual, and communication features makes it an excellent choice for environments demanding robust and versatile communication solutions.
