Wall Mount Arm Swivel Tilt 26″-55″ Flat Screen

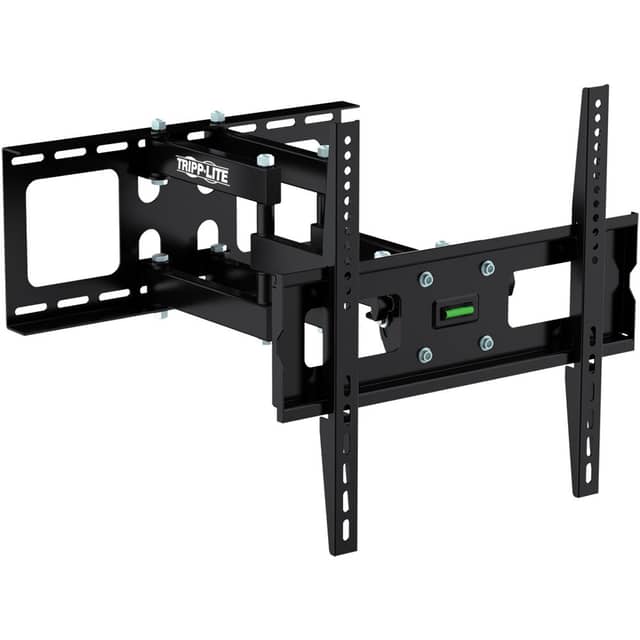

The Eaton Tripp Lite series DWM2655M is a full-motion wall mount designed for one 26- to 55-inch flat-panel TV or monitor. Its black steel construction supports displays weighing up to 110 lb while providing the movement needed to adjust viewing position after installation. The arm extends from 4.92 to 20.27 inches and combines 120-degree swivel, -15-degree to +15-degree tilt, and -5-degree to +5-degree level adjustment. One-touch adjustment makes it possible to reposition a compatible display for more comfortable viewing.

Ideal Use Cases

This mount is suited to installations requiring a single monitor or HDTV to remain close to the wall when retracted while retaining the option to extend and reposition the screen. Its swivel range is useful when a display must face different viewing positions, while the tilt adjustment helps accommodate installations above or below the preferred sight line. The level adjustment provides a way to refine screen alignment after mounting. Compatibility with 26- to 55-inch flat-panel displays and a maximum capacity of 110 lb covers a wide selection of supported screens, subject to weight and VESA compatibility.

Why Choose This Model

The DWM2655M combines extension, swivel, tilt, and level adjustment in one wall-mounted assembly. Its full-motion design offers more positioning flexibility than a fixed mount, allowing the arm to extend as far as 20.27 inches or retract to a minimum extension of 4.92 inches. The 120-degree swivel supports substantial side-to-side positioning, while the -15-degree to +15-degree tilt range provides 30 degrees of total vertical movement. Black steel construction supports the mount’s rated 110 lb capacity, and one-touch adjustment simplifies routine screen positioning.

Installation and Integration

The DWM2655M installs on a wall and requires assembly and tools. Before installation, confirm that the display weighs no more than 110 lb and uses one of the listed VESA patterns: 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, or 400 x 400. The package includes the mount, owner’s manual, small and large spacers, washers, D6 washers, concrete anchors, anchor bolts, and multiple M5, M6, and M8 screw sizes. These included components provide several display-fastening configurations. Follow the owner’s manual and select the supplied hardware appropriate to the compatible display and installation.

The assembled product measures 21.9 inches wide, 4.6 inches high, and 9.2 inches in length or depth. It weighs 17.69 lb, so its own weight should be considered alongside the attached display during installation. The -5-degree to +5-degree level adjustment can be used for final alignment once the mount and screen are in position.

Performance Highlights

The arm’s 4.92- to 20.27-inch extension range enables the display to move through more than 15 inches of extension. A 120-degree swivel changes the horizontal viewing direction, and the -15-degree to +15-degree tilt range changes the vertical angle. Level adjustment from -5 degrees to +5 degrees provides an additional alignment control separate from tilt. Together, these movements support comfortable viewing without requiring the display to remain in one fixed orientation. The mount accommodates one display and is intended for monitor or HDTV use.

What Makes It Different

The DWM2655M brings several independent adjustments to a steel wall-mount platform rated for displays up to 110 lb. Its one-touch adjustment, full-motion arm, broad list of supported VESA patterns, and three forms of positioning allow the screen location, angle, and level to be refined within the stated ranges. The package also includes spacers and several screw sizes for compatible mounting configurations. REACH, RoHS, and RoHS3 compliance information is provided for this model.

Final Assessment

For a compatible 26- to 55-inch TV or monitor, the Eaton DWM2655M provides a clearly specified balance of load capacity and screen movement. Its 110 lb rating, 20.27-inch maximum extension, 120-degree swivel, 30-degree total tilt range, and post-installation level adjustment make it well matched to wall installations where the screen must be repositioned. Confirm the display’s weight and VESA pattern before installation.
