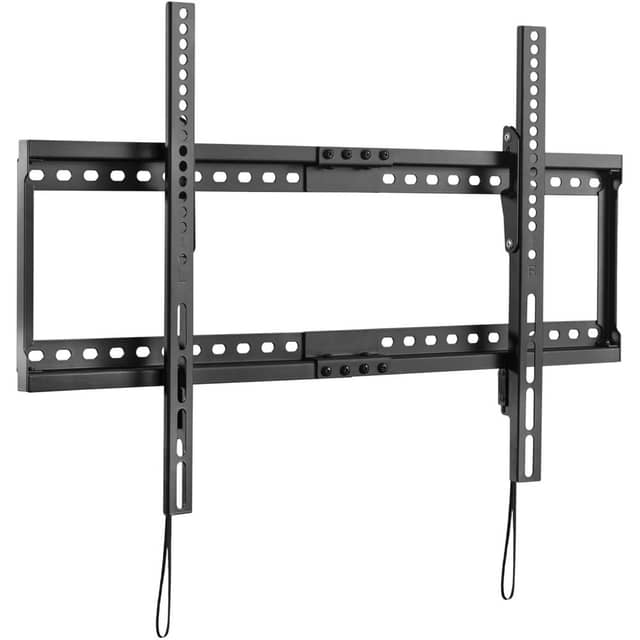

Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays

Ideal Use Cases

The Eaton DWT3280X is designed to mount one curved or flat-screen monitor or HDTV measuring 32 to 80 inches. With a maximum weight capacity of 165 lb (75 kg), it is suited to installations involving a substantial display that falls within the supported size, weight, and VESA requirements. Its wall-mounted configuration frees the display from furniture or floor-standing support, while the black steel construction provides a straightforward appearance. The display sits 1.46 inches from the wall, making this model particularly appropriate when a close-mounted profile is preferred.

Why Choose This Model

Broad display compatibility is a defining advantage of the DWT3280X. The mount accepts many popular curved and flat-screen displays and supports numerous VESA patterns, including 150×100, 150×150, 200×100, 200×200, 200×400, 300×200, 300×300, 350×350, 400×200, 400×300, 400×400, 600×200, 600×300, and 600×400. This range helps accommodate different monitor and HDTV mounting-hole configurations without limiting the mount to one screen format. Adjustable horizontal mounting rails also help compensate when wall studs are positioned away from the desired display centerline.

Installation and Integration

The mount is intended for wall installation and requires assembly and tools. Its adjustable horizontal rails provide flexibility during placement, particularly when the available wall studs are off-center. Open-back architecture leaves cables and power cords accessible after the display is mounted, supporting cleaner integration without blocking routine connection access. The mount itself measures 25.2 inches wide, 16.5 inches high, and 1.5 inches deep, with a product weight of 3.25 lb. Mounting hardware and an owner’s manual are supplied with the DWT3280X Heavy-Duty Tilt Wall Mount. Before installation, the display’s dimensions, weight, and VESA mounting pattern should be compared with the listed specifications.

Performance Highlights

The DWT3280X combines tilt motion with a low-profile wall position. Eaton specifies the degrees of motion as 8/+0 tilt, allowing the mounted display angle to be adjusted within that stated range. Its steel structure supports one display weighing up to 165 lb, provided all installation and compatibility requirements are met. The 1.46-inch wall distance keeps the screen close to the mounting surface, while the open-back design maintains access to connected cables and power cords. The mount is also listed as compliant with RoHS and REACH requirements.

What Makes It Different

Several practical details distinguish this model from a basic fixed wall mount. It supports both curved and flat screens across a 32- to 80-inch range, offers tilt adjustment, and accommodates an extensive selection of VESA patterns. Adjustable horizontal rails address the common challenge of aligning a display when studs do not match the preferred screen position. Automatic spring locks help retain the mounted display, while integrated quick-release cords are designed to make display removal faster and easier. Together, these features support both initial placement and later access without sacrificing the mount’s close-to-wall format.

Final Assessment

The Eaton DWT3280X is a focused choice for mounting a single compatible monitor or HDTV when screen-size coverage, high weight capacity, tilt capability, and a shallow wall profile are key requirements. Its combination of black steel construction, 165 lb capacity, numerous VESA patterns, adjustable horizontal rails, accessible open-back architecture, and quick-release spring-lock system addresses the most important mechanical and installation considerations. For a curved or flat display between 32 and 80 inches, this model offers a clearly specified wall-mounting platform with the mounting hardware and owner’s manual included.
